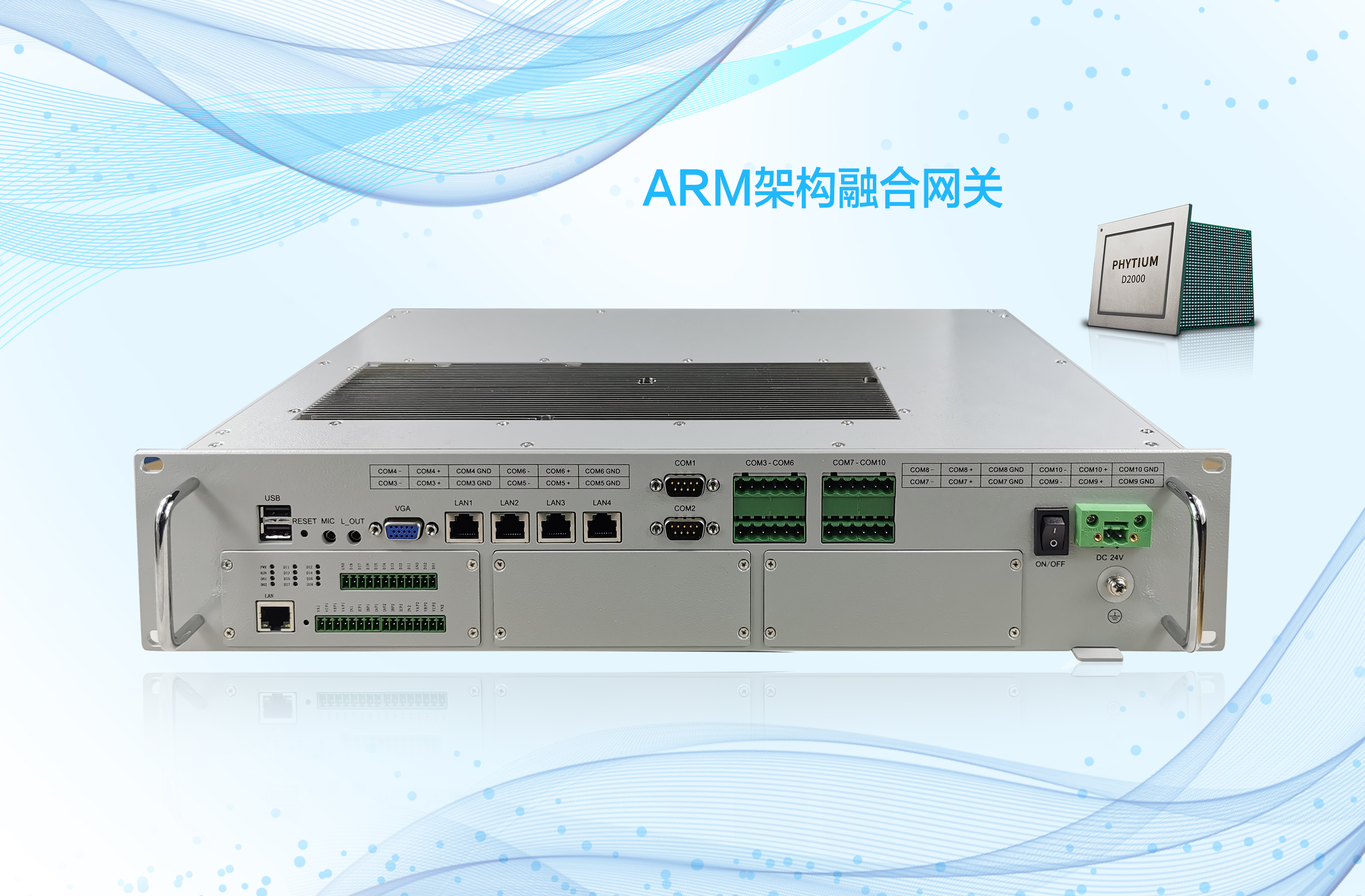

GEA-8992-FT

搭載飛騰處理器

支持多種協議，特殊協議可定制

靈活豐富的通訊擴展功能

產品內置安全加密功能

寬溫工作范圍可達-30~70℃，串口全隔離，通過多種EMC可靠性相關的ESD/CS/RS/EFT/DIP/等測試，并內置雙看門狗

產品型錄

產品介紹
產品規格
檔案下載

搭載飛騰處理器

支持多種協議，特殊協議可定制

靈活豐富的通訊擴展功能

產品內置安全加密功能

寬溫工作范圍可達-30~70℃，串口全隔離，通過多種EMC可靠性相關的ESD/CS/RS/EFT/DIP/等測試，并內置雙看門狗

CPU	飛騰FT-2000/4 4核處理器 2.6-3.0GHz
架構	飛騰COME
內存	8GB DDR4
機箱	2U上架機箱，上蓋局部鰭片、側板開孔散熱
顯示	VGA顯示
存儲	128GB SSD
網口	4路網訊，10M/100M/1000M自適應 1路采集卡以太網100M接口使用RJ45連接器引出后置
USB口	2xUSB2.0（前面板） 4xUSB2.0（后面板）
串口接口	板載2路RS-232（DB9）板載8路RS-485(端子)光電隔離
復位鍵	后置RESETE鍵
電源接口	1路電源輸入、SATA3硬盤供電 LED指示燈×2，φ3，電源指示燈綠燈常亮，硬盤指示燈綠燈閃爍
電源開關	1路電源開關（I:開、O:關）
電源輸入	電源內置，推薦采用DC24V供電（供電范圍18V～36V）
蜂鳴器	板載PC蜂鳴器×1，用于自檢
音頻輸入	1路MIC
音頻輸出	1路 Line-out
三相電信號采集	2路三相電電壓電流信號輸入
數字量輸出	2路CAN總線通訊，6路繼電器常開常閉輸出
BIOS	支持“斷電重啟”
溫度	工作溫度：-10℃～﹢50℃ 存儲溫度：-20～﹢55℃
相對濕度	0%～95%相對濕度,無凝露
大氣壓力	70.1kPa~106.2kPa(海拔不超過3000m)
外觀尺寸	465mmx88mmx268mm
