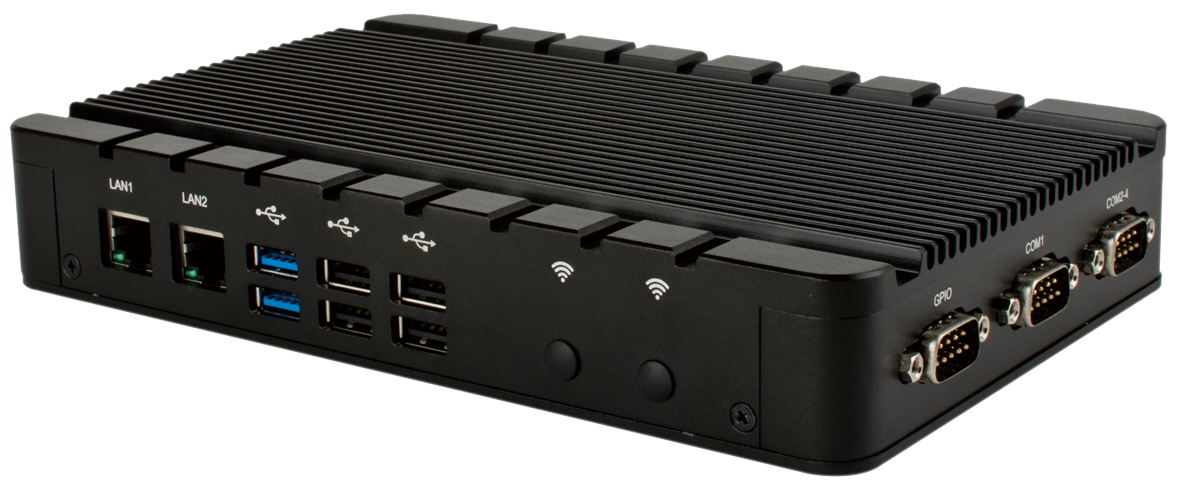

集智達--MMAC-6896 無風扇工控電腦

集智達MMAC-6896 英特爾®Haswell?Celeron® Processor 無風扇工控機

處理器系統	cpu	英特爾®Haswell?Celeron2957U1.4GHz雙核雙線程CPU
	Cpu插槽	板載
	前端總線
	芯片組	英特爾®Haswell
	BIOS	系統BIOS：SPD BIOS
內存	技術構架	DDR3 1666MT/s
	容量	16GB
	插槽	SODIMM
視頻	圖形控制器	英特爾®HD4000圖形媒體加速器
	DVI	DVI-I接口
	分辨率	4096*2304
HDMI		HDMI 1.4
HDMI	分辨率	4096*2304
Display Port		DISPLAY PORT++1.2
Display Port	分辨率	3200*2000
多顯支持		HDMI+DP+DVI同步或異步顯示
網絡	控制器	網絡1：intel® i210 PSE千兆網卡網絡2：intel® i210 PSE千兆網卡
音頻	控制器	瑞顯HD ALC662音頻解碼（左右聲道+麥克風）
Super I/O	控制器	ITE8782，支持4COM
硬件監測	看門狗定時的器	定時器 1-255秒/分，溢出時引起復位
硬件監測	智能風扇	FSNLESS，全鋁被動散熱
TPM	控制器	N/A
I/O 接口	USB	6個USB（2個USB3.0 PORT+4個兼容USB2.0/1.1）
	串口	Com1:9線RS232，RS232/485可挑線選擇，TX/RX信號支持4000V 浪涌保護
	串口	Com2-4:3線RS232，TX/RX信號支持4000V浪涌保護
	GPIO	8位，提供例程，自由定義輸入/輸出，3.3V@14MA電平
擴展總線	SMBUS	內部集成
	Mini-PCIe	1個半長Mini-PCIe 1x插槽，支持PCIe和USB設備
		1個全長Mini-PCIe 1x插槽，支持USB 3G/4G通訊模塊
	UIM Scoket	3GUIM卡槽，內置翻蓋
存儲	SATA	1個7Pin SATA-Ⅲ及電源座子，傳輸速率3Gb/s
電源	電源類型	DC9-19V寬范圍動態輸入，支持電源反向保護，3PIN5.08mm鳳凰頭接口
電源	電源功耗	15W
指示燈	狀態燈	HDD LED
		POWER LED
工作環境	工作溫度	-20℃～60℃ with SSD;0℃～40℃ with 機械硬盤
	存儲溫度	-40℃～80℃
	工作濕度	10%～90% 相對濕度，無凝露
	存儲濕度	10%～90% 相對濕度，無凝露
外觀尺寸	尺寸	210mm（長）136mm（寬35mm（高）

特點
英特爾®Haswell Celeron1.4GHz or 1.6GHz 雙核雙線程處理器可支持16GB DDR3插槽英特爾®HD4000圖形媒體加速器支持HDMI+DP+DVI，同步或異步顯示 6個USB，4個COM 1個全長Mini-PCIe（支持USB 3G/4G通訊模塊） 1個半長Mini-PCIe（支持PCIe和USB設備） 1個半長M-SATA（用于儲存） 2個英特爾®I210 POE千兆網卡直流9-19V輸入
MMAC-6896-57U intel®Haswell ?Celeron ®Processor2957U1.4GHz，DVI-I/HDMI/DP顯示，2個千兆網絡，4個串口，6個USB，直流9-19V輸入 MMAC-6896-80U intel®Haswell ?Celeron ®Processor2980U1.6GHz，DVI-I/HDMI/DP顯示，2個千兆網絡，4個串口，6個USB，直流9-19V輸入
